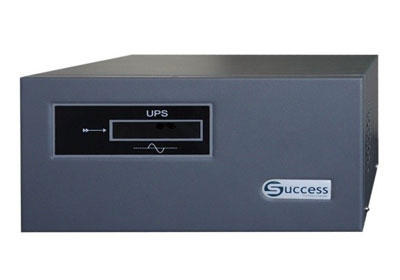

FEATURES
- · DSP based intelligent control
- · Full bridge configuration based on power MOSFETs
- · LCD based display for user-friendly display of parameters and status
- · Protection against 440V mains input
- · Dynamic short circuit protection with fold-back current limiting.
- · Protections against all possible errors like battery low, over load, heavy load, short circuit etc.
- · Early warning for battery low and overload conditions. System continue normally if the error is corrected.
- · Short circuit proof inverter with instantaneous current control
- · SMPS type constant current charger with full charge cutoff.
- · Ideal for Mixed load application Indigenous design with proven technology.
- · Protection against accidental output feedback disconnection.
|
TECHNICAL SPECIFICATION |
- Capacity
- Input AC Voltage
- Input DC Voltage
- Output Voltage on Mains
- Output on Inv mode
- Output wave form on Inv mode
- Frequency on Inv mode
- Charging current
- Charging mode
- Charging working range
- Protection
|
|
- ----- 800VA,1000VA,1.4KVA,2KVA,3KVA,5KVA, to 20 KVA
- ----- 120V – 285V
- ----- 12V,24V,36V,48V to 360V
- ----- Same as Input
- ----- 220V +/- 3%
- ----- Pure Sine Wave
- ----- 50Hz +/- 0.1Hz
- ----- Settable upto15 Amp
- ----- Multistage / constant current
- ----- 120 V-270V AC Mains input
- ----- Over load, Over charge, Short circuit and deep discharge
|
|
APPLICATION
- • Solar Inverters.
- • Off Grid Line Inverters.
- • Solar Street Lights.
- • All type of solar panels for electricity storage at office Hospitals, Educational Institutions.

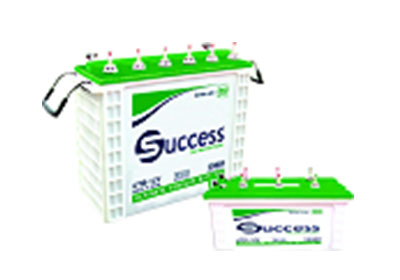

FEATURES
- • Designed to withstand frequent and long power cuts.
- • Extra thick tubular plates & heat sealed.
- • Assembled in quality polypropylene.
- • Containers with plate holding cradle.
- • Dynamic short circuit protection with fold-back current limiting.
- • Special Lead Alloy encompass virgin active materials.
- • Auto controlled electrode formation.
- • Micro Porous Ceramic vent cum sealed floats plugs to reduce topping up frequency.
- • Resistance to corrosion and high ambient temperature.
- • Ultra low maintenance & abuse resistant.
- • Replacement Guarantee for any manufacture defects.
- • Eco friendly and pollution free.
|
TECHNICAL SPECIFICATION
|
|
- ----- EL 80AH ,EL 100AH,
- ----- EL 120 AH ,EL150AH ,EL 200AH
- ----- FT 40AH,FT 60AH, FT 80AH
- ----- FT 100AH ,FT 120AH
|
|
|

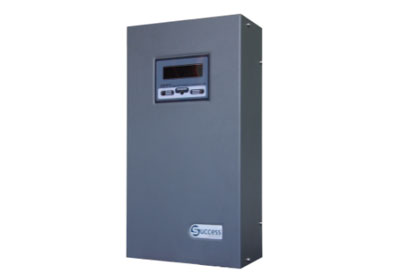

FEATURES
- • DSP based inter leaved switching
- • Switching device MOSFETS & IGBT
- • Positive common in MOSFET base design and Negative Common in IGBT based Design
- • Very Low ripple current in input and output due to inter leaved Switching
- • Maximum current, constant voltage battery charging method
- • When the battery voltage is low, the MPPT will track the panel Impedance and give maximum current to charge the battery
- • When the battery voltage reaches near to full charge voltage ,it will reduce the current to keep the battery voltage constant.
- • The current will be zero when the voltage is equal to rated full charge voltage
- • User can enable or disable intelligent sharing feature at any time by using the switch provided on the system
- • All parameter are displaying on the LCD, like solar voltage, battery voltage, charging current, total KWH (kilo watt hour)
- • Automatic cooling system inbuilt
PROTECTION
- • Panel input high voltage or low voltage than the MPPT rated voltage ,it will be protected
- • Battery full charge cutoff
|
|
|
APPLICATION
- • Computer Lab.
- • Data Centers.
- • Stock Market.
- • Offices , etc….

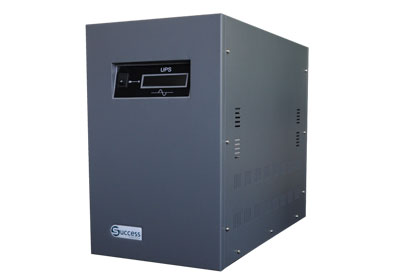

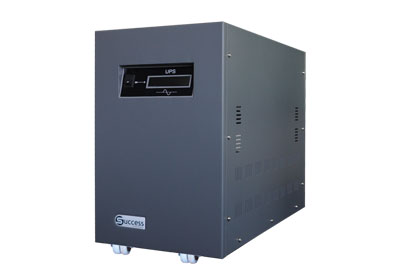

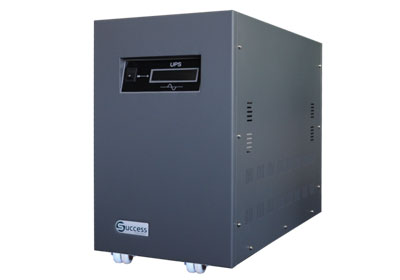

FEATURES
- • DSP based intelligent control
- • Full bridge configuration based on power MOSFETs/IGBT
- • LCD based display for user-friendly display of parameters and status
- • Protection against 440V mains input
- • Dynamic short circuit protection with fold-back current limiting.
- • Protections against all possible errors like battery low, over load, heavy load, short circuit etc.
- • Early warning for battery low and overload conditions. System continue normally if the error is corrected.
- • SMPS type constant current charger with full charge cutoff.
- • Ideal for Mixed load application Indigenous design with proven technology.
- • Indigenous design with proven technology.
- • Protection against accidental output feedback disconnection.
|
TECHNICAL SPECIFICATION
- Capacity
- Input AC Voltage
- Input DC Voltage
- Output Voltage on Mains
- Output on Inv mode
- Output wave form on Inv mode
- Frequency on Inv mode
- Charging current
- Charging mode
- Charging type
- Protection
|
- ----- 800VA,1000VA,1.4KVA,2KVA,3KVA, to 20 KVA
- ----- 120V – 285V
- ----- 12V,24V,36V,48V,72V,96V,120V
- ----- Same as Input
- ----- 220V +/- 5%
- ----- Pure Sine Wave
- ----- 50Hz +/- 0.1Hz
- ----- 4Amp to 10Amp
- ----- Multistage / constant current
- ----- SMPS
- ----- Over load, Over charge, Short circuit and deep discharge
|
|
|
|
|
|
|
APPLICATION
- • Solar power stations
- • Rural electrification, Small home power systems
- • Power supply for traffic, security, gas industry
- • 12V and 24V battery charging systems
- • Other industrial and commercial applications
|

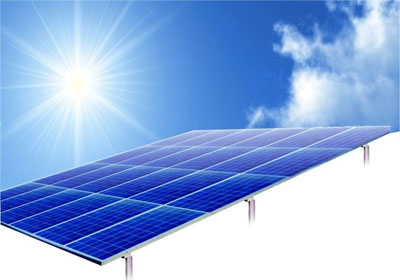

TECHNICAL SPECIFICATION
- Poly-crystalline Solar Panels
|
- ----- Easy to install module with long –term warranty
- ----- 15%higher output compared to any other thin film module for a given area
- ----- Minimal losses due to shading and module mismatches.
|
|
|
|
|
| | |
